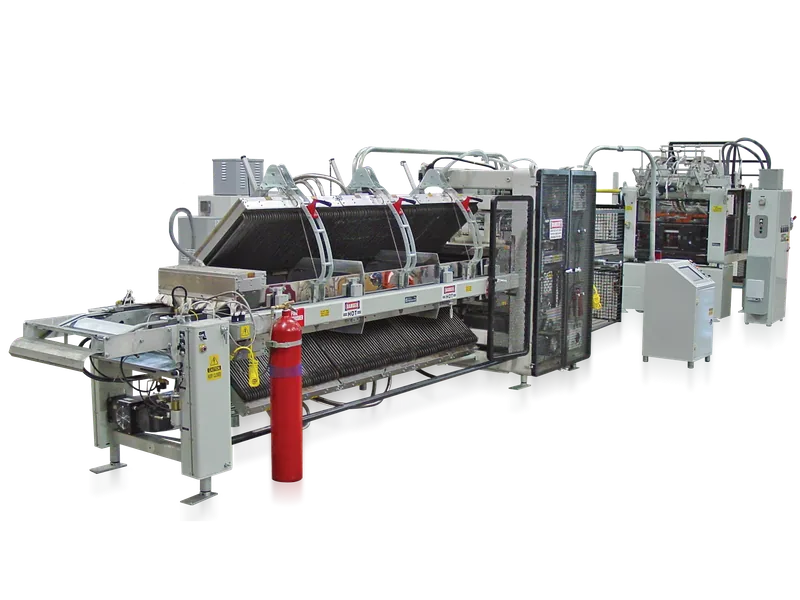

Irwin Thermoformer Model 28NT
Irwin Thermoformer Model 28NT

Material

Index

Heat

Tunnel

Former

Maximum Chain Speed

200"/sec. (5080mm/sec.)

Sheet Width

Max.: 30" (762mm) Min.: 19" (483mm)

Length

135" - 170" (3429-4318mm)

Optinal 183-228 (4648mm-5791mm)

Heating Element

Cal Rod

Temperature Control

Opto 22, Mistic PID Control:

+2° at 600°F +1 at 316°C

Sheet Width

30" Maximum (762mm), 19"

Minimum (483mm)

Maximum Mold Size

28" Wide (711mm), 40" Long (1016mm)

Depth of Draw

Standard 2.5" (64mm)

Cup machine 5" (127mm)

Press Rating

60 Tons

Shut Height

Standard: 6" (152mm)

Cup Machine: 10.8" (274mm)

Platen Travel

5.2" (132mm)per platen at 6" (152mm)

shut Height for foam machine

5.1" (131mm) top - 5.2" (132mm)

bottom platen at 10.8" (274mm)

shut height for cup machine

Irwin Trim Press

Sheet Width

Stroke

Standard Platen Opening

Servo Pick

Self Feed Treadle(Auto Start)

Product Depth

Maximum Cutting Force

Dry Circle Speed

Servo Canopy

Counter Balance

Platen Motion

Maximum 30" (762mm)

6" (152mm) Standard

I ndex Direction 14" (356mm)[20" (5080mm)

optional], Across Sheet 34.5" (876mm)

Standard

Standard

Maximum 5" (127mm)

27.5 Tons

1-200 cpm

Standard

Standard
