Safety First…Protecting Your Workers



• Protected Feed Access on Sheet Throat

  and Parts Hopper

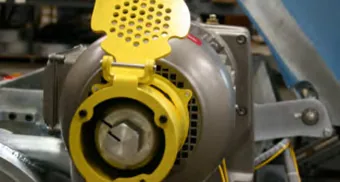

• Protected and Interlocked Manual

  Reverse Points for all drive motors

• Robust fail safe ‘Dog Bone’ Torque Arms

  for Drive Trains

• All access points eclectically interlocked.

• Global ‘E-Stop’ protection.



Safe manual Reverse Interlocked Access

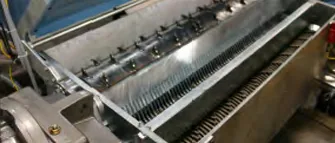

“Tilt Top” Cutting Chamber Access

Flexibility of OperatiSpecications for CLS Chesaw (Model 50 shown)



• Depth (Feed Direction) = 77 inches (1956 mm)

• Width (Cross Sheet Direction) =138

inches (3505 mm)

• Height = 60 inches (1524 mm)

• Weight = 5320 lbs (2418 Kg)

• Power Requirement = 3 Phase 60 Hz

service…80 or 100 Amps for 25 or 30 Hp

main motor drive train (50 Hz available)
